Product Line

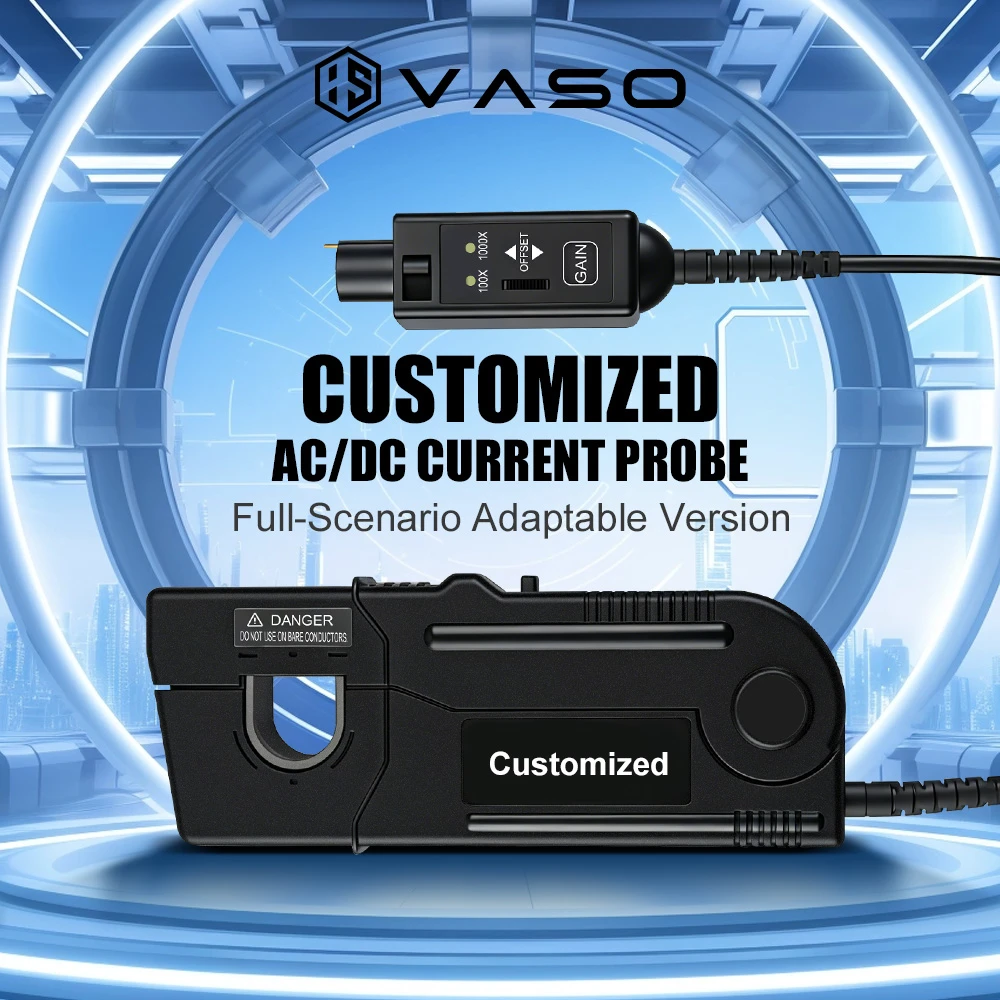

Customized AC/DC Current Probe
This series of product lines covers peak currents ranging from 1A to 3000A (or even higher currents) - and can be tailored to meet specific performance requirements.
Learn More

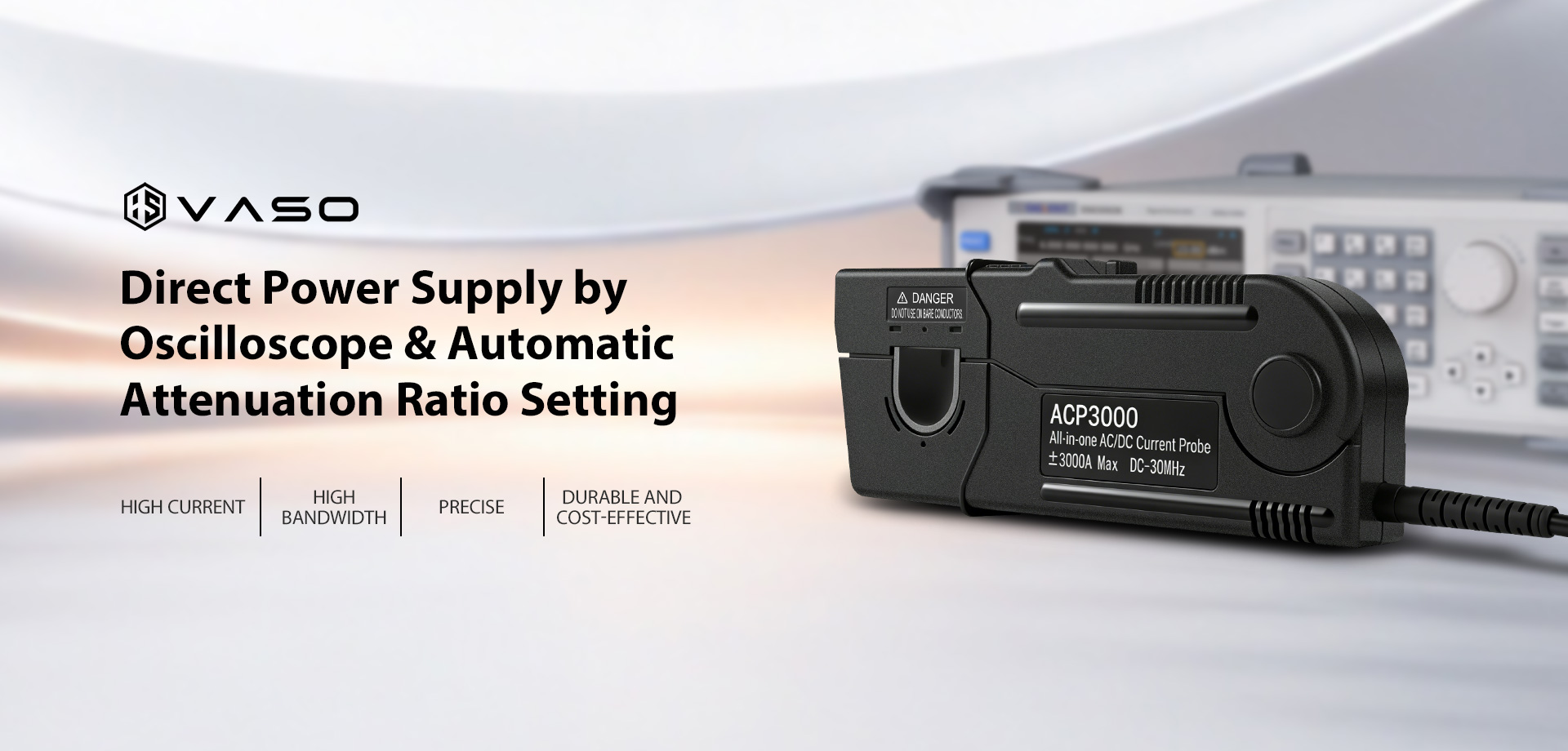

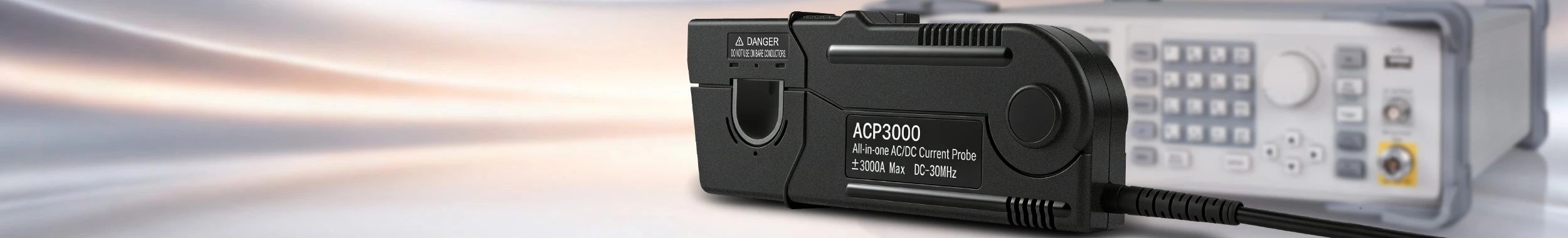

ACP3000
All-in-one AC/DC Current Probe
Innovative oscilloscope direct power supplytechnology eliminates external adapters. High-current, wide-bandwidth, high-precision -redefining flexibility in current measurement.
| Peak Current | 3,000A |
|---|---|
| Bandwidth | DC-100MHz |
| Accuracy | 1% typical |
| Power Supply | Oscilloscope Direct |

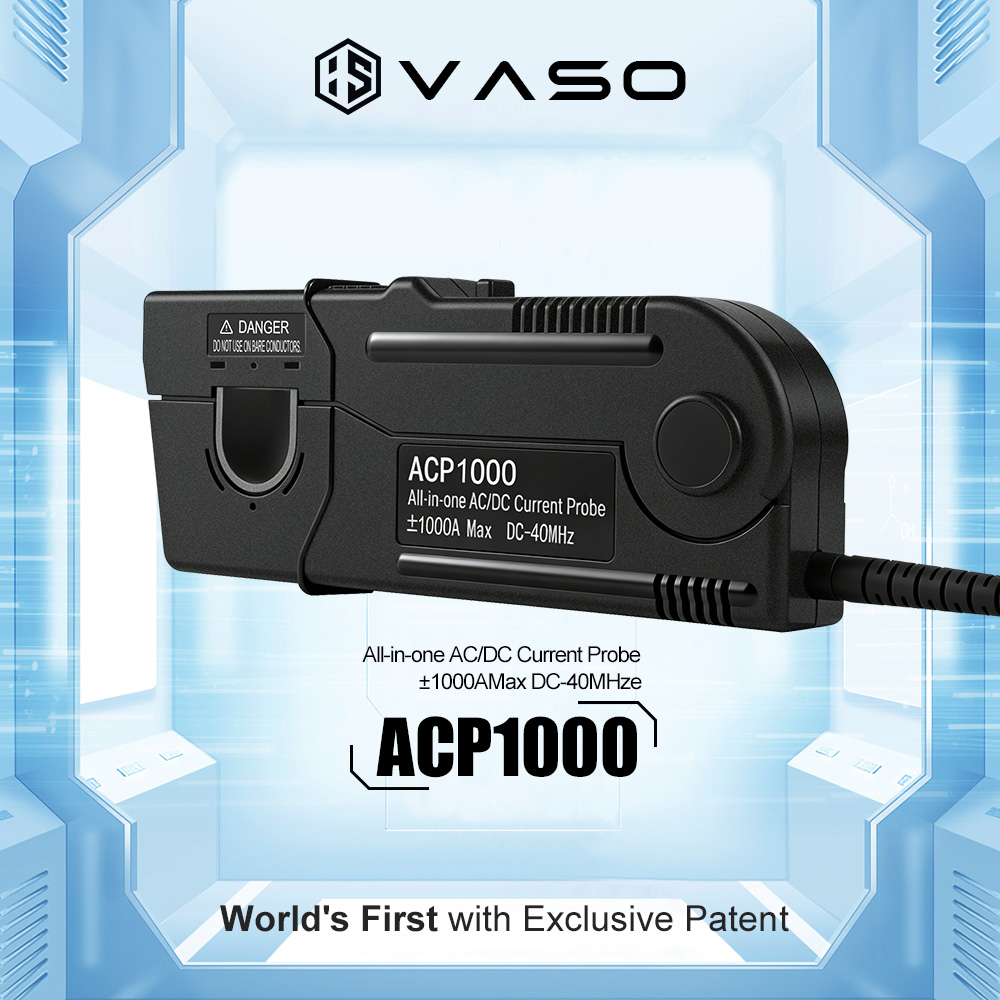

ACP1000
All-in-one AC/DC Current Probe
+1% high-precision measurement with industrial-grade rugged design. Wide temperatureadaptability, vibration and dust resistance. Dualpower supply for true plug-and-play.
| Peak Current | 1,000A |
|---|---|
| Bandwidth | DC-4OMHz |
| Accuracy | 1% typical |
| Power Supply | Dual Mode |

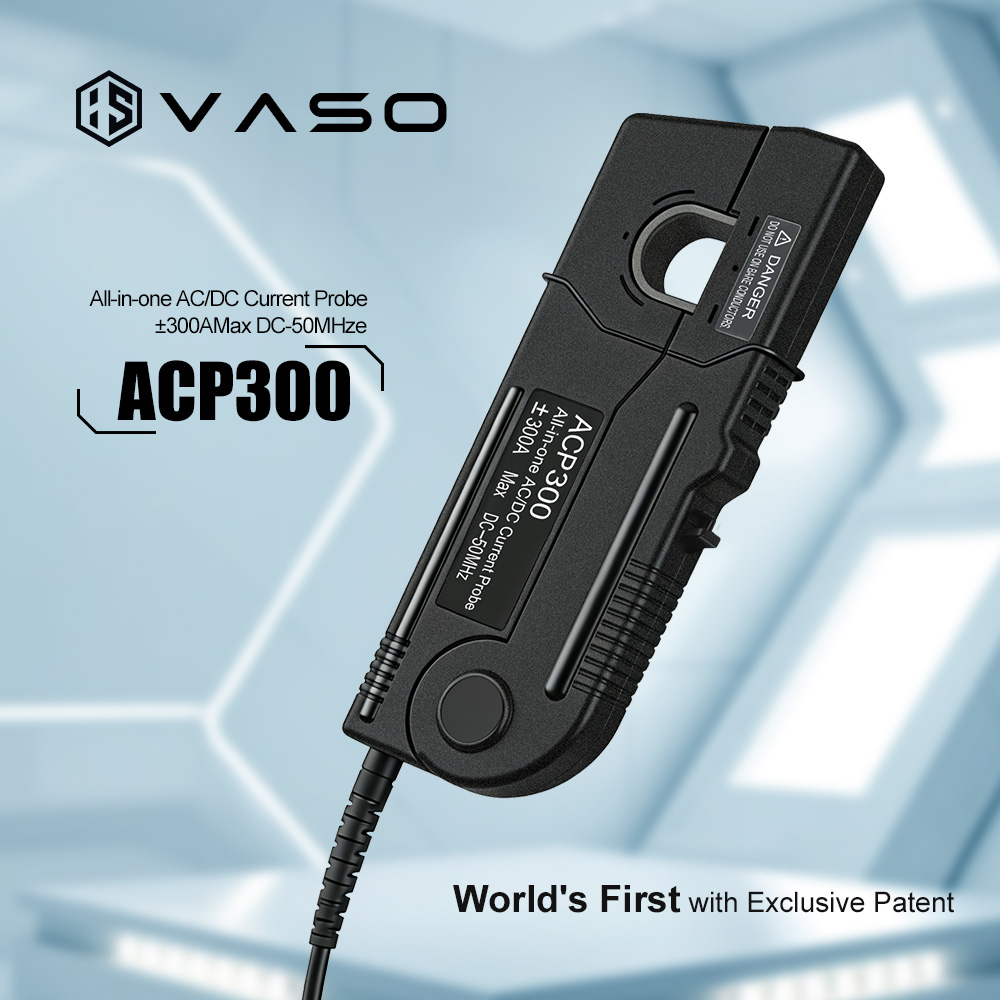

ACP300 High-Precision AC/DC Current Probe
Small range, high performance - ideal forprecision testing scenarios. Wide 300A rangewith DC-5OMHz bandwidth for accurate, stablemeasurement in demanding conditions.
| Peak Current | 300A |
|---|---|
| Bandwidth | DC-5OMHz |
| Accuracy | 1% typical |
| Power Supply | Industrial Grade |
The Figures Behind Our Technology
These figures summarize the performance range and support model presented on the original page.
VASO-Huasu Zhike
Huasu Zhike is a high-tech enterprise specialized in the R&D, production and sales of current probes, focusing on providing accurate and reliable current detection solutions for various fields.
Our core products are a full range of current probes — featuring high-frequency, high-precision and large-current, anti-interference performance. Adopting integrated Hall effect and transformer technology, our probes deliver non-intrusive measurement that accurately captures AC, DC and pulse current waveforms without disconnecting the circuit.
With bandwidth from 2MHz to 100MHz and peak current up to 700A, our probes are widely applied in new energy vehicles, power systems, industrial automation, avionics, EMC testing and beyond — helping customers complete circuit debugging, fault diagnosis and energy efficiency evaluation.
Our professional technical team provides customized R&D and calibration services, backed by 24/7 technical support to ensure stable operation of your equipment.
New Energy Vehicles
Battery management system validation, motor drive current analysis, power electronics efficiency testing for EV/HEV powertrain development.
Industrial Automation
Servo motor control verification, inverter performance testing, industrial equipment commissioning and predictive maintenance diagnostics.
Avionics
High-reliability power system validation, avionics bus current monitoring, MIL-spec testing and certification support.
Power Systems
Grid-connected inverter testing, UPS system validation, power quality analysis and smart grid component qualification.
EMC Testing
Conducted emission measurement, transient immunity evaluation, pre-compliance and full compliance current probe setups.
Power Electronics R&D
Switching converter waveform capture, magnetic component characterization, circuit debugging and energy efficiency evaluation.
FAQ
1. Which oscilloscopes are compatible with the ACP series current probes?
Featuring a replaceable adapter design with proprietary technology, this product is fully compatible with all oscilloscope interfaces from the 1st generation to the 3rd generation.
2. What are the features of the ACP series current probes?

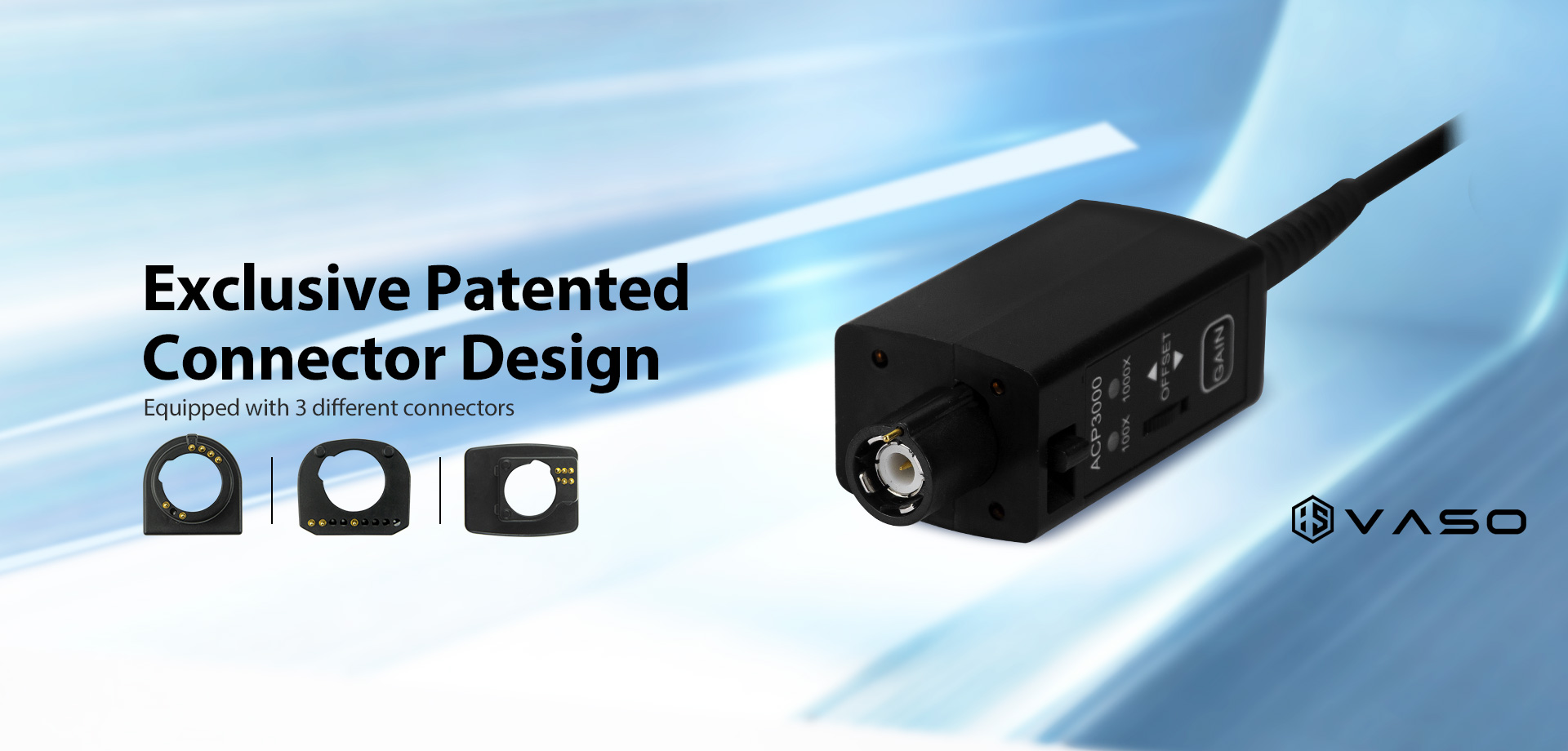

Equipped with an exclusive patented connector design, the probe is directly powered by the oscilloscope and supports automatic attenuation ratio configuration. Compared with conventional current probes that require an external power adapter and manual attenuation setting, our product greatly simplifies test wiring and streamlines measurement setup procedures. When switching to a different oscilloscope platform, only a simple adapter replacement is needed for compatibility, effectively maximizing and protecting your test investment.
3. What industry pain points does the ACP series current probe solve?
1.Adopting a new-generation structural sensor design with robust and durable construction, it addresses the common industry issue of fragile traditional high-frequency current sensors. 2.The entire unit supports a wide operating temperature range from -40℃ to +85℃, breaking the limitation of traditional high-frequency AC/DC current probes that only operate within 0℃ to +50℃. 3.Extremely low insertion impedance ensures no sensor overheating, enabling long-duration high-current testing with no frequency derating during high-frequency measurements. 4.This product can be customized for high bandwidth and high current scenarios according to user requirements.
4. Key parameters for current probe selection
Core considerations include bandwidth, current rating, measurement accuracy, jaw opening diameter and operating environmental conditions.
5. How to select the appropriate bandwidth for a current probe?
The core principle of bandwidth selection: the probe bandwidth should be 3 to 5 times the maximum frequency of the measured signal. Comprehensive evaluation shall be made combining rise time, oscilloscope matching, noise performance and current range. Higher bandwidth does not always mean better performance.
6. Critical matching rules & common pitfalls for current probe selection
- Oscilloscope Bandwidth Matching
- The overall measurement system bandwidth is determined by the lower bandwidth value between the probe and the oscilloscope.
- It is recommended that the probe bandwidth reaches at least 80% of the oscilloscope bandwidth.
- Example: A 500MHz oscilloscope requires a probe with ≥400MHz bandwidth.
- Balance between Bandwidth and Current Range
- High-bandwidth probes (100MHz and above): Generally with a small current range (≤50A).
- High-current probes (≥100A): Usually limited to lower bandwidth (≤50MHz).
- Selection standard: Sufficient bandwidth + current range covering peak current with 20%~30% margin.
- Noise Suppression
- Low-frequency applications (e.g. 1kHz): A 10MHz bandwidth probe is sufficient to avoid RF noise introduced by excessive high bandwidth.
- High-frequency applications: Prioritize probes with excellent frequency flatness (within ±1dB) and resonance peaks outside the working frequency band.
